● S, C and C+L band measurement range
● Up to 160 channels measurements
● DWDM Channel spacing down to 50 GHz
● ITU G.694.1 grid compliant (DWDM)
● ITU G.694.2 grid compliant (CWDM)
● High wavelength accuracy: ± 50 pm
● Dynamic range > 50 dB
● PDL < 0.3 dB
● Channel power measurement
● Channel threshold detection
● In-band OSNR measurement
Optimized Platform Performance
● Lightweight, 2.1kg
● 7 inch touch screen
● Windows user interface for easy operation
● Damp-dust-shock proof
● 10 hours continuous operation
● Supports WiFi / Bluethooth / GPS
● Direct printing function(compatible with PCL printers)
● Remote/local control by PC
MTP Suite PC Software
● Test data analysis
● Batch editing and printing
● Remote control function
● Reporting

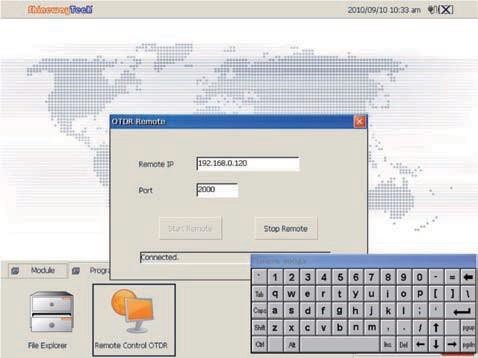

Network RemoteControl Module (optional)
●Convenient networking
●Remote control instrument operation

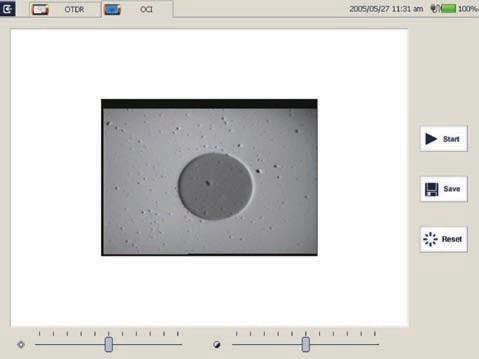

Optical Connector Inspector Module (optional)
●Pass / Fail assessment
●Interchangeable connector tips
Applications
● DWDM / CWDM Installation / Service Deployment / Maintenance
● Laser component characterization
● Optical Channel Monitoring
|
MTP-200-OSA Platform |
||||
|
Display |
7-inch TFT Touch Screen (800×480) |
|||
|
Connectivity |
USB×2; 10/100Mbit/s RJ-45×1 |
|||
|
Memory |
2GB |
|||
|
Power Supply |
Rechargeable Li-Ion Battery/AC Adapter |
|||
|
Battery Life |
10 hours continuous operation |
|||
|
Working Temp. |
-20°C - 50°C |
|||
|
Storage Temp. |
-40°C - 60°C |
|||
|
Humidity |
0 - 95% (Non-Condensing) |
|||
|
Weight |
2.1kg |
|||
|
Dimensions (L×W×H) |
290×175×75mm |
|||
|
OSA Module |
||||
|
Wavelength Range |
Full Band |
C+L Band |
C Band |
|
|
1250 – 1650 nm |
1521 – 1611 nm |
1527 – 1567 nm |
||
|
Channel Number |
160 |
|||
|
Channel Spacing |
50 / 100 GHz, customizable |
|||
|
Input Power Range |
-50 to +15 dBm |
|||
|
Max Input Power |
+30 dBm |
|||
|
Channel Power Accuracy |
±1.0 dB |
±0.5 dB |
±0.5 dB |
|
|
Power Measurement Repeatability |
0.1 dB |
|||
|
PDL |
< 0.5 dB |
< 0.3 dB |
< 0.3 dB |
|
|
Absolute Wavelength Accuracy |
±500 pm |
±50 pm |
±50 pm |
|
|
Wavelength Repeatability |
±100 pm |
±10 pm |
±10 pm |
|
|
Wavelength Resolution |
3.5 nm |
0.35 nm |
0.16 nm |
|
|
Wavelength Readout |
10 pm |
1 pm |
1 pm |
|
|
Optical Rejection Ratio (ORR) |
>40 dB |
|||
|
Noise Floor |
-55 dBm |
|||
|
Sweep Time |
10 s |
7 s |
5 s |
|
|
MCI100 Optical Connector Inspector Module (Optional) |
|
|
Field of View |
400µm×300µm |
|
Resolution |
≤1.5µm |
|
Focusing |
Manual Focus |
|
Microscope Dimensions |
Ø32×175mm |
*Specifications subject to change without notice
Order Information:
Standard Package
MTP-200 Host, Lithium Battery, CD, Software, Data Cable, Carrying Case, Warranty card, Calibration Certificate
Optional Module:
MCI100: Optical Connector Inspector Module RC100: Remote control Module
