GE Ethernet Tester

Source: ShinewayTech     Date: 2020-04-10     Read: 6,273
  • Information
  • Parameter
  • Download

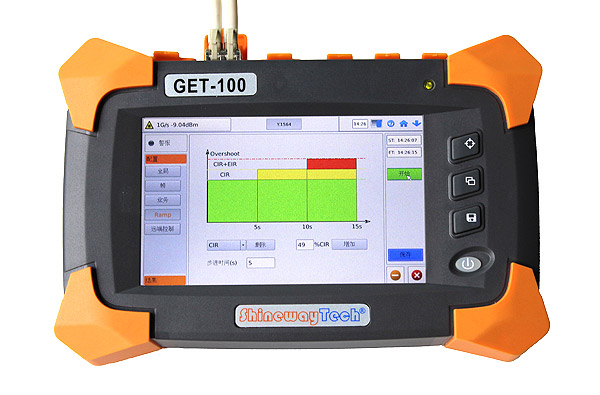

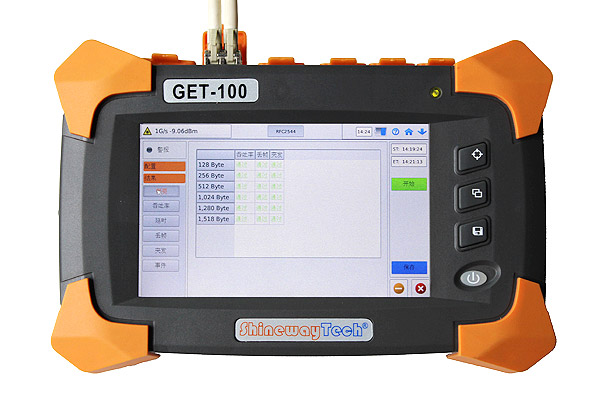

GET-100 Gigabit Ethernet Tester

GET-100 is a handheld 10M/100M/1000M gigabit Ethernet tester, used for the Ethernet installation, operation and maintenance services.

The GET-100 design in a small and portable device which provides packet capture, network monitoring, network performance testing, data generation, test leads and error test functions in an organic whole unit. It is widely used in network layer 1/2/3 BER test and RFC - 2544 test. GET-100 help maintenance staff  quickly locate fault and analyze the network



Features

●  Electrical port and optical ports with rate at 10/100/1000Mbps

●  Smart and durable, field application ready

●  5-inch LCD color touch screen, smart navigation menu

●  Results can be shown graphically and numerically

●  RFC2544 auto test, quickly find the fault

●  Full Y.1564 test

●  LED indicator light, on-screen display and ICON

●  Large capacity memory to save settings and test results

●  Embedded software to easy upgrade



 Functions

L1/L2/L3 BER Test

Integrated   RFC2544   benchmark   test  throughput, packet  loss,   latency, back-to-back

Multi- stream traffic generation (10 traffic stream)

Receiving end flow filter analysis

VLAN test

Connectivity test: PING, TRACE ROUTE,IP scan

Through, terminal mode test and frame length, frame type, and utilization stat.

Optical power test, optical module temperature, working current, voltage test

Cable VCT: Identifying short circuit, open circuit, cable length fault location

Service disruption time test

Intelligent loop back test

Jitter Test

OAM and TCP testing

USB data interface, driver-free
