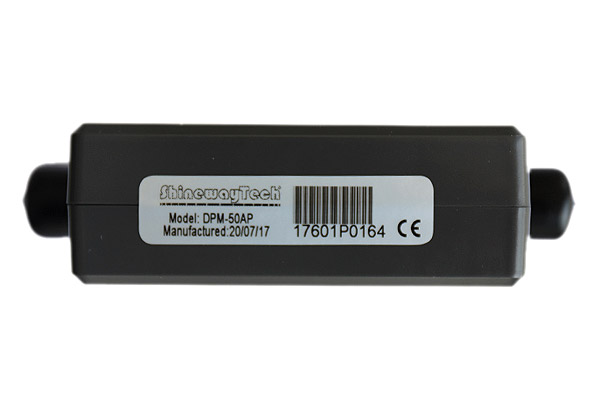

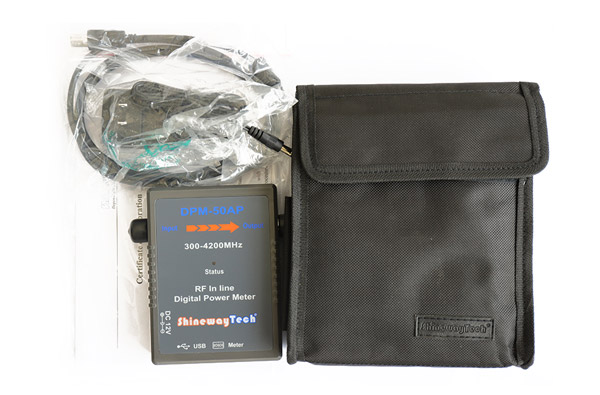

DPM-50 RF In Line Digital Power Meter

DPM-50 has been designed for field engineers and technicians to perform power measurement in wireless networks of various standards.

DPM-50 features high dynamic range, high accuracy, and high stability, it works with PC monitoring software and optional handheld monitor to perform real-time in-line monitoring on entire antenna system and saves test data for analysis and evaluation.

The typical application is to monitor the transmitter and antenna of wireless base station during network installation and maintenance, DPM-50 can quickly measure forward power of transmitter, reflected power of antenna and entire system’s VSWR.

DPM-50 is the ideal tool for base station and antenna system measurement and troubleshooting.



Function

●Measures 2G/3G wireless network, including GSM900/1800, CDMA800/1900, TD-SCDMA, WCDMA, CDMA2000, WLAN 2.4G & WiMAX or user-defined band

●High-accuracy forward/reflected power, VSWR, Return Loss & load power  measurement

●Peak power and Peak/Average Ratio measurement

Burst power measurement

●Monitor function & test data saving

●PC monitoring software and handheld monitor for result display

Standard N(Female) connector supports various transmission cable & antenna

USB & DB9 interface

Reverse connection protection



Features

Handheld & portable

Handheld monitor with backlight display

USB for real-time monitoring & data transfer

320×240 TFT Color LCD (Optional)

Straightforward test result display

CE, FCC certificates
