●Applicable on singlemode/multimode fibers
●Unique Output Power Display
●CW/MOD tones output
●Quick response, no warm-up
●Interchangeable connectors: FC/SC/ST
●9V alkaline battery/AC adapter
●Power saving: Auto-off setting
●Pocketsize, lightweight and damp-dust-shock proof
●CE, FCC, FDA certificates
SLS-21 series Stabilized Laser Source paired with a ShinewayTech optical power meter can meet the test requirements of fiber identification, attenuation/loss measurements, continuity verification and transmission quality evaluation on singlemode and multimode fibers in LAN/WAN/CATV systems, offering high quality, stability and competitive cost.
|
Model |
SLS-21 |
||
|
A-07 |
A-00 |
B-07 |
|
|
Wavelength (±20nm) |
1310/1550 |
850/1300 |
|
|
Output Power |
≥-7 |
≥0 |
≥-7 |
|
Display |
LCD |
||
|
Output Mode |
CW, 270Hz,1KHz, 2KHz |
||
|
Emitter Type |
FP-LD |
||
|
Connector Type |
FC/PC(Interchangeable SC,ST) |
||
|
Spectrum Width |
≤ 5nm |
||
|
Stability |
±0.05dB/15min, ±0.10dB/8hr@ 1310/1550; ±0.15dB/8hr@ 850/1300nm |
||
|
Fiber Type |
Multi/Single Mode Fiber |
||
|
Auto Off |
After 5 minutes idle |
||
|
Power Supply |
9V Alkaline battery(450mAh) / optional 9V AC adapter |
||
|
Battery Life |
≥20hours with 9V Alkaline |
||
|
Operating Temperature |
-20°C to 50°C |
||
|
Storage Temperature |
-40°C to 70°C |
||
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
||
|
Weight |
300g (0.66lbs) |
||
|
Dimensions (H×W×T) |
145×75×25mm (5.7×2.9×1inch) |
||
* Specifications subject to change without notice
Ordering Information

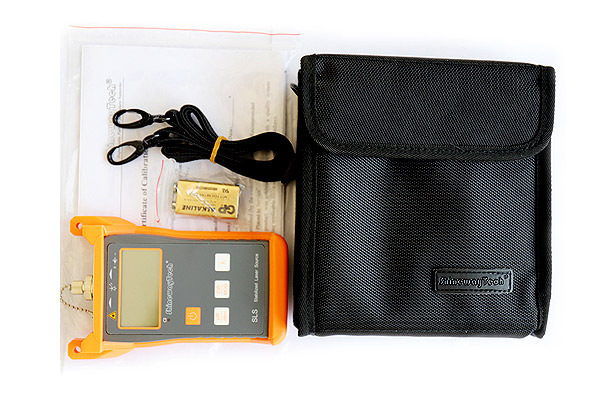

Standard Package:
Instrument, 9V Alkaline battery, Rubber boot, Warranty card, CE certificate, Certificate of calibration, User manual.
